Rod-shaped Briquette Maker

Make Rod-shaped Charcoal

(Log briquette machine can extrude charcoal/coal/mine powder into rob-shaped briquettes)

Sawdust Wheat Stalk Bagasse
Sawdust Wheat Stalk Bagasse

Biomass Materials: weed tree, straw, rice straw, rice bran powder, peanut shells/hulls, pinewood/pine wood residues, floor powder, bamboo powder, hemp fibre, waste paper/newspaper, reed canary grass, sunflower husk seed shell, switchgrass etc.

Coal Charcoal Mineral Powder
Coal Powder/Dust Charcoal Powder/Dust Mineral Powder

Coal Materials: coal powder, coal dust, charcoal powder, charcoal dust, mine powder etc.

Moulds of Log Briquette Press



Square coal briquettes Biomass Rob/Stick
Biomass Log Briquettes Biomass Rob/Stick
Rod-shaped Charcoal Chacroal Stick
Rod-shaped Charcoal Charcoal Stick

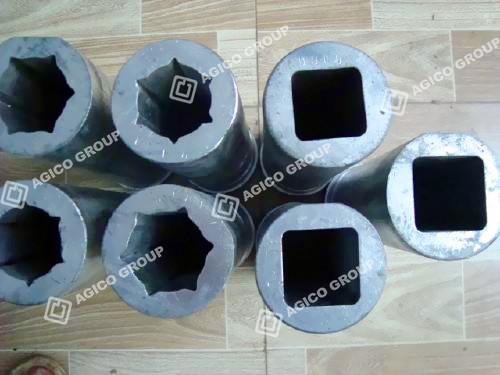

Log Briquette Machine Spare Parts Log Briquetting Moulds
Log Briquetting Moulds

Charcoal Stick / Log Briquette Machine for Sale

A. Small Briquette Press

Model GCBA-I small briquette press
Output capacity kg/h 180-210 kg/h
Motor Power (kw) 15kw
Electric heater (kw) 6kw
Size of briquettes Dia.50mm
Size of inside hole Dia.16mm
Density of briquettes 1.3 g/cm3
Weight(kg) 585kg
Warranty 12 Months
Overall dimension(mm) 1700*750*1280 mm



Model GCBA-II small briquette press
Output kg/h 300~350 kg/h
Motor Power (kw) 22 kW
Electric heater (kw) 9 kw
Size of briquettes Dia.70mm
Size of inside hole Dia.20mm
Density of briquettes 1.3 g/cm3
Weight(kg) 1300 kg
Overall dimension(mm) 1960*880*1620 mm
Warranty 12 Months



B. Large Briquette Machine for Industrial Production

Model GCBC- I Industrial large briquette Machine
Output capacity kg/h 180-210
Motor Power (kw) 15
Electric heater (kw) 2.2kw*2
Life of the inner former 1-2years
Size of briquettes Dia.50mm*L.480mm
Size of inside hole Dia.16mm
Density of briquettes 1.3 g/cm3
Weight(kg) 700kg
Overall dimension(mm) 2700*600*1600 mm



Model GCBC-II large briquette Machine
Output capacity kg/h 300-350
Motor Power (kw) 18.5kw
Electric heater (kw) 2.2kw×2
Life of the inner former 1-2years
Size of briquettes Dia.60mm*L.500mm
Size of inside hole Dia.16mm
Density of briquettes 1.3 g/cm3
Weight(kg) 1000kg
Overall dimension(mm) 2000*600*1700 mm



B. Charcoal Stick Briquette Press

Cylinder-shaped charcoal.jpg

Model TFCX150 BBQ Charcoal Stick Briquette Press
Output 150 kg/h (diameter 30mm)
200 kg/h (diameter 40mm)
250 kg/h (diameter 50mm)
Power 7.7 KW (Main motor 5.5 KW + Automatic laser briquette breaker 1.1KW + force feeder 1.1KW)
Diameter of Finished BBQ Briquettes 22-65mm
Overall size 1300*800*1600mm
Packing size 1550*1310*1360mm



You May Be Also Interested in Knowing:

How to Make Rod-shaped Charcoal by Yourself

Charcoal is a clean and convenient fuel for fireplaces and cooking like BBQ, there are many charcoal products for sale in the market, it is very easy for people to make charcoal by themselves, it might need a couple of times before you can master the skills in the days after. And before the making of charcoal, the first thing you should understand is how the charcoals are formed from the wood: when the wood is burned to a certain degree, keep heating the wood with fire under low oxygen condition, this process is destructive distillation, the sulfide matter, wood tar, water content are gasified and separated from the wood, the material left is the charcoal.
If you want to make rod-shaped charcoal by yourself, here are the instructions you need to follow:

  1. Find a steel container, cut the wood into proper sizes, find an open area;
  2. Burn the wood to certain degree to fasten the progress(half burned);
  3. Seal the container as tight as possible, keep the heating until the distillation process is finished.
  4. Wait until the container is cooled and get the charcoal out.



Buy from AGICO GROUP and you will never regret it!

If you are interested in our Log Briquette Machine or Charcoal Stick Briquette Press or simply want to something about making rod-shaped charcoal, feel free to send us a email now!
